Oil Chiller Airmajor Kura model AMOC-10GH, AMOC-15GH, AMOC-20GH, AMOC-30GH là sản phẩm sản xuất chuyên dụng để làm mát cho dầu coolant của các loại máy công cụ, đặc biệt là nhà sản xuất cho các máy công cụ Moriseiki
Là sản phẩm thay thế cho các loại Oil cooling unit Daikin model AKZJ148, AKZJ149, AKZJ328, AKZJ329, AKZJ568, AKZJ569, AKZJ908, AKZJ909Kanto Seiki Oil Matic model V300,V750, V1500, V2200, KTV-3, KTV-5, KTV-7.5, KTV-15, KTV-22..

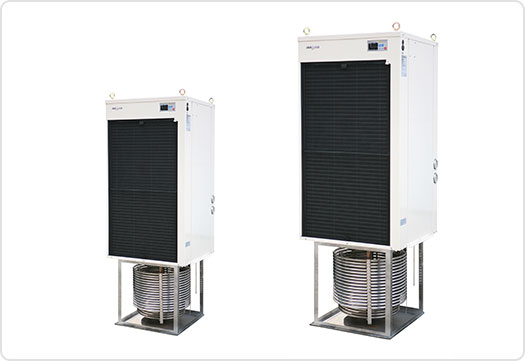

Immersion Type Coolant Cooler
| Type |
AMOC-10GH |
AMOC-20GH |
AMOC-30GH |
AMOC-50GH |
| Cooling capacity(W) |
2,940/3,460 |
5,100/6,000 |
8,500/10,000 |
12,700/15,000 |
| Power |
3-phase AC 220V / 380V / 440V Optional, 50/60Hz |
3-phase AC 380V/440V, 50/60Hz |
| Dimension(WxDxH)(mm) |
365x446x975 |
515x550x1347 |
578x608x1657 |
745x740x1960 |
| Compressor |
3 phase, rotary, 1100W |
3 phase, rotary, 2600W |
3 phase, scroll, 3500W |
3 phase, scroll, 5700W |
| Evaporator |
Open Coil Type(Forced vortex type) |
| Condenser |
Air-cooling type, Fin Tube Type |
| Fan Motor |
Ø300, 120W x 1 |
Ø300, 120W x 2 |
Ø350, 170W x 2 |
Ø400, 245W x 2 |
| Agitator |
25W |
40W |
| Refrigerant type |
R-410A |
| Use range (ambient temp.) |
15 ~ 45˚C (50˚C Option) |
| Use range (liquid temp.) |
15 ~ 45˚C |
| Power capacity |
6.3A/2.4 KVA at 220V/60Hz |
10.0A/3.8 KVA at 220V/60Hz |
9.7A/7.5 KVA at 440V/60Hz |
13A/10 KVA at 440V/60Hz |
| Circuit breaker capacity(A) |
10 |
15 |
20 |
20 |
Features - Chức năng
Features of Coolant Cooler - Các tính năng của Máy làm máy dầu coolant
- •This is a cooler to cool the coolant that is applied to the machining surface such as cutting or polishing or tools.
- •The deposition coolant cooler is a general type cooler that deposits the evaporator in a coolant tank. The forced circulating coolant cooler is the cooler that absorbs the coolant with coolant pump and forces to circulate it to evaporator for cooling when the height of tank is low.
- •The soluble or non-soluble liquid are both available.
 |
Line-up up to 0.5~5 horsepower
General class line-up of 0.5~5 horsepower completed
|
 |
 |
Selection of various evaporator method according to pollution
|
|
Applicable to various kinds of coolant by using a double SUS coil type
|
Uses a SUS coil type deposition evaporator
|
 |
3 phase compressor for all models applied
- 0.5 class/1.0 class ; operates smoothly by using a 3 phase compressor
- Authorized durability with low noise and low vibration
- Available to respond 380V/440V without transmitter
|
 |
 |
High performance superprecise digital controller adopted
Easy lamp to see and figures are displayed at the same time
Refined touch panel with easy temperature control function
Timer and alarm function in case of trouble
|
 |
 |
Eco-friendly refrigerant : R-410A
•Uses eco-friendly new refrigerant (R-410A) with low Ozone destruction index for all models
|
|
